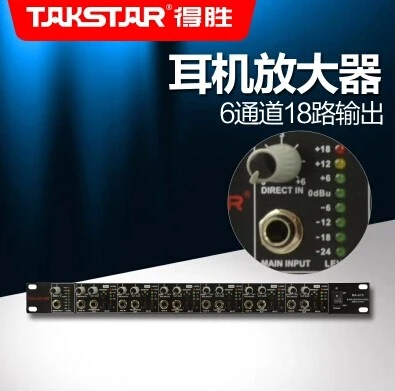

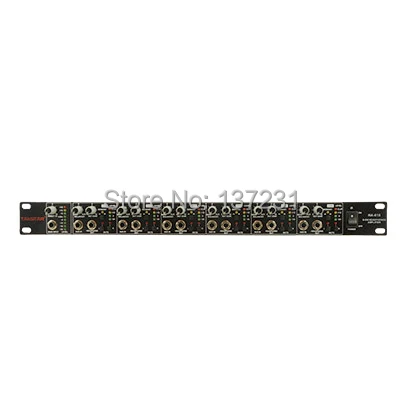

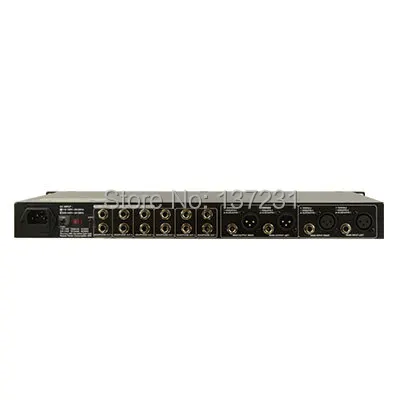

HA-618 6 channel headphone amplifier 18 output earphones ha-618 distributor recording equipment DHL EMS |

---

Brand NameTakstarModel NumberHA-618TypeProfessional AmplifierChannels8 (7.1)PackageHaveOutput Power+21 dBmInput TypeLINE IN (AUDIO IN)Output TypeLINE OUT (AUDIO OUT)Recommended Headphone Maximum Impedance32-50 OhmBuilt-in BatteryNoMeasurement unitpiece/piecesEach pack1Output TypeXLR and 1/4" jackInput TypeXLR and 1/4" jack

Unavailable in

Description

• product details

Characteristic • can be installed in a 19 "rack • 6 separate headphone channel • Input gain control, a separate output gain control • Each channel reaches three headphone output, a total of 18 headphone output • have direct input (Direct In) and headphone output (Headphone Output) panel, easy to operate when the device is mounted on the bracket • Input and output bit quasi-LED metering Reverb • balance control of the main input (MAIN IN) and auxiliary input (AUX IN) signal • The main output for connection to additional headphone amplifier • High quality (even at high volume levels) • Abnormal rugged construction makes it durable • Universal & professional headphone amplifier system, to facilitate recording and stage use • Compliance with QS9000 quality certification system







Parameter Main input (MAIN IN) • Connection Block: XLR and 1/4 "jack • Type: High-frequency filter, servo balanced inputs • Impedance: 50 kOhms balanced, 25 kOhms unbalanced • Maximum input: +21 dBu balanced and unbalanced • A total of simulation system than (CMRR): typ.40 dB,> 55dB @ 1KHz Auxiliary input (AUX IN) with direct input (DIRECT IN) • Connection Block: 1/4 "TRS (tip = left, ring = right, sleeve = ground) • Type: Unbalanced • Impedance: 25 kOhms unbalanced • Maximum input: + 21dBu unbalanced • A total of simulation system than (CMRR) typ, 40 dB,> 55dB @ 1 KHz Export • Connection Block: XLR and 1/4 "jack • Type: Balanced and Unbalanced • Impedance: depends on the input impedance • Maximum output: + 21dBu balanced and unbalanced System Specifications • Frequency response blame: 10 Hz to 50KHz, + / - 3 dB • Noise:> 90 dB, Unweighted, 22 Hz to 22 KHz (> 95 dB @ + 4 dBu) • Total harmonic distortion:. 0.005% typ @ + 4 dBu, 1 KHz, Gain 1 PA • Maximum output power: +21 dBm • Minimum Output Impedance: 8 Ohms • Maximum Gain: +20 dB Dimensions Weight • Dimensions: 483 * 217 * 44mm (19 "* 8.84" * 1.7 ") • Weight: 2.9 kg / 6.39 lbs   Configuration HA-618 Headphone Amplifier 1pcs Power cable 1pcs Manual 1pcs

---
