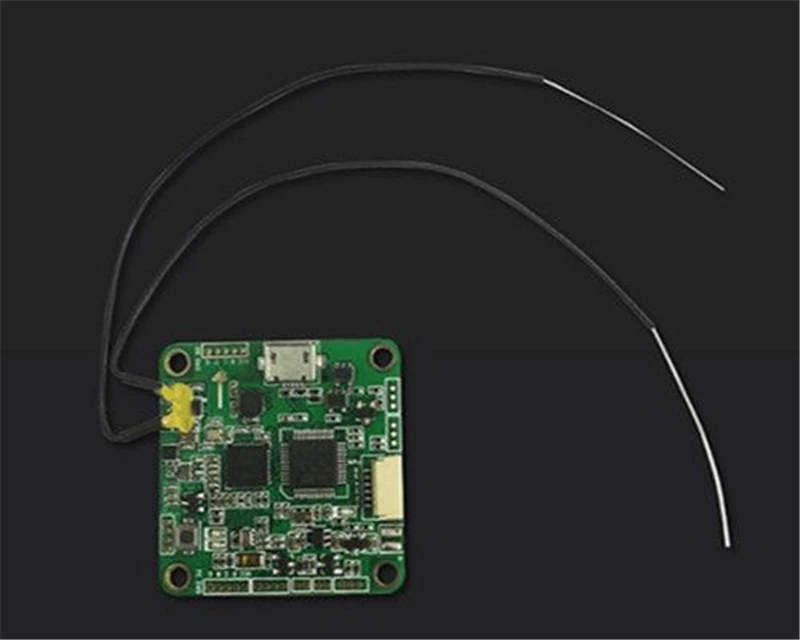

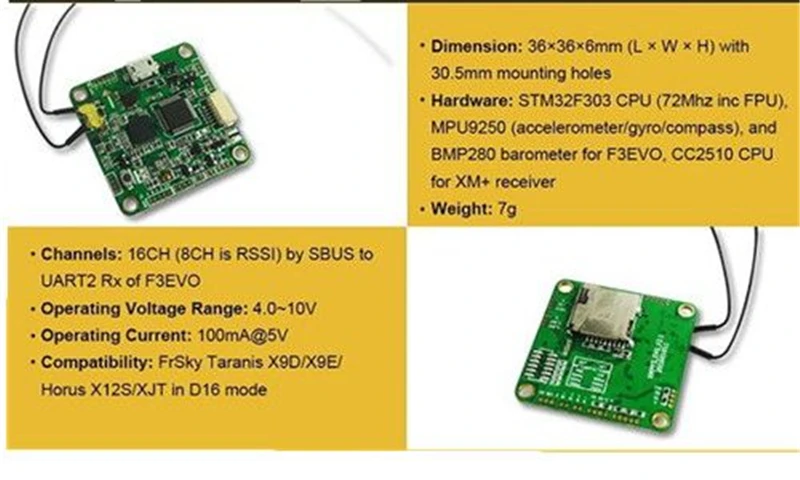

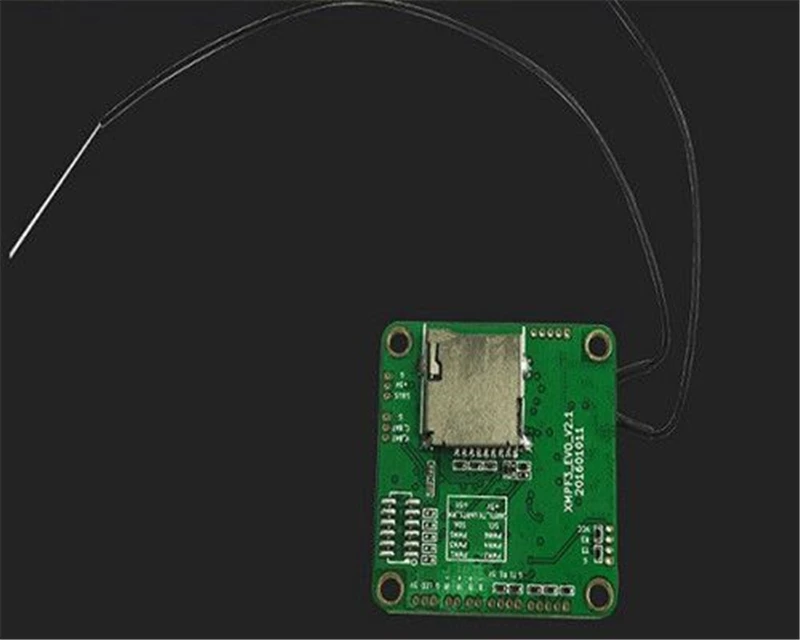

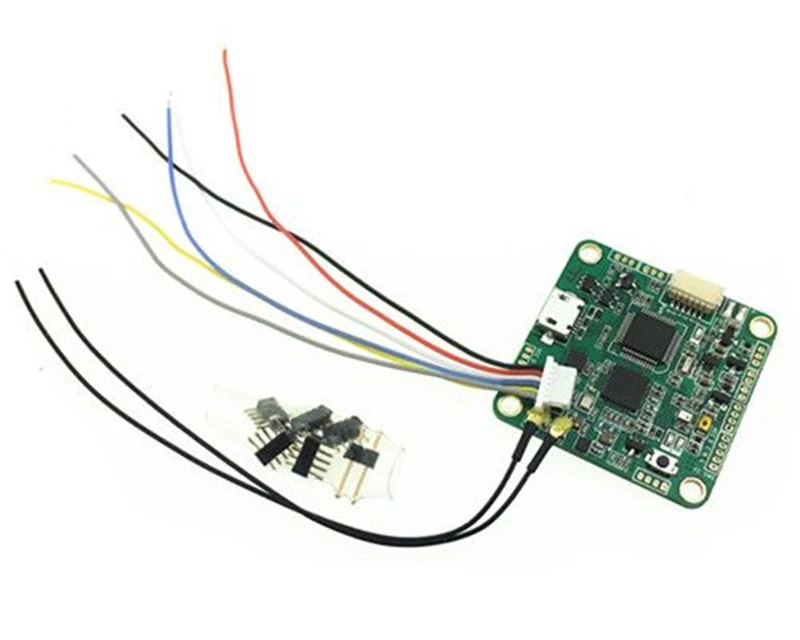

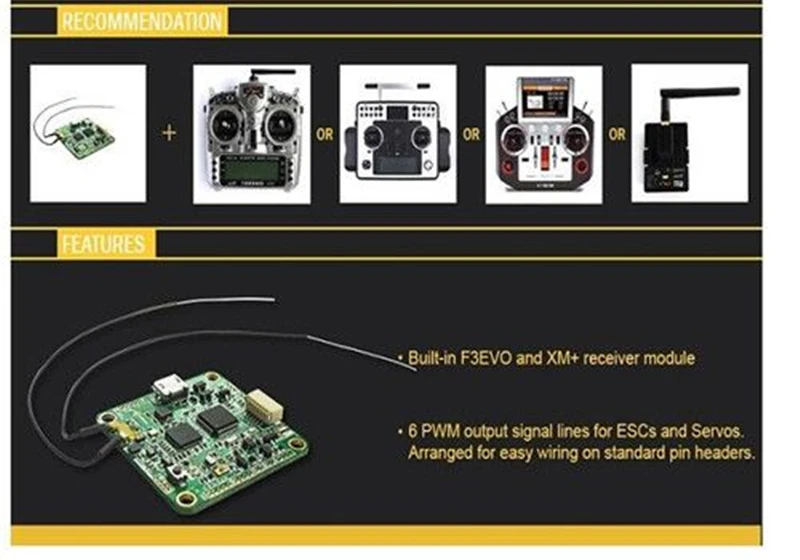

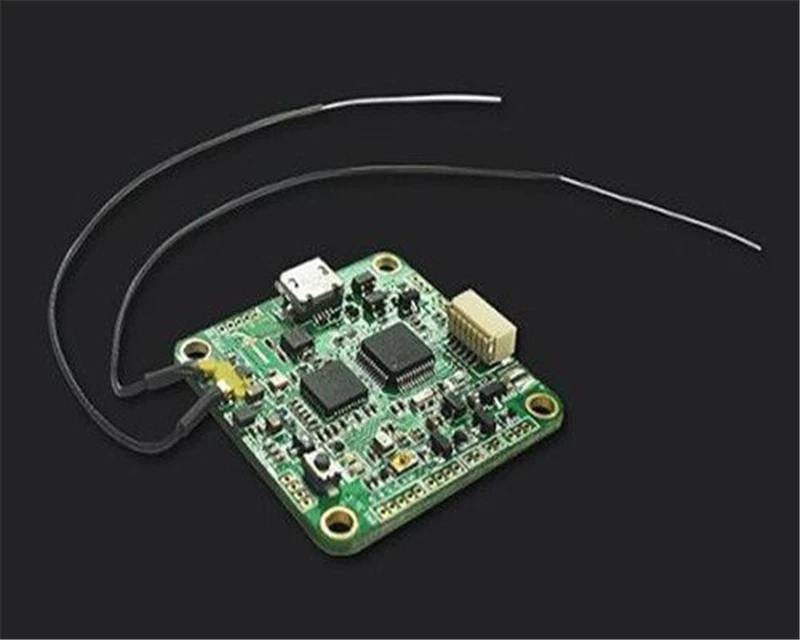

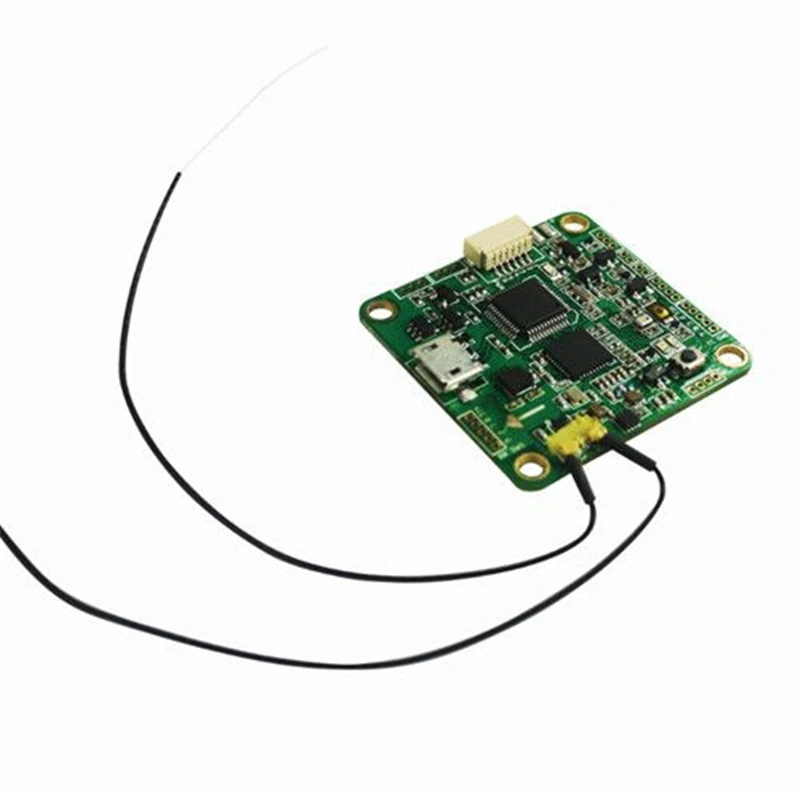

  -Built-in F3EVO and XM+ receiver module - the latest Accelerometer, Gyro and Compass and Baro sensor  -XM+ receiver is a one-way receiver (no telemetry), it will receive the commands of Remote Control and send to -F3EVO by SBUS (8CH is RSSI) to UART2 Rx of F3EVO -6 PWM output signal lines for ESCs and Servos. Arranged for easy wiring on standard pin headers   Configuration of F3EVO: Because the XM+ receiver receive the commands of Remote Control and send to F3EVO by SBUS(16CH, 8CH is                  RSSI) to UART2 Rx of F3EVO, we need set the appropriate settings on the Configurator tool. 1. In the ports, set the UART2 to be Serial RX. 2. In the Configuration, set the Receiver Mode to be RX_SERIAL and Serial Receiver Provider to be SBUS, and disable the RSSI_ADC Analog RSSI input. 3. In the Receiver, set the RSSI Channel to be 8.       Brand Name: Frsky Item Name: Flight Control Board Built-in F3EVO  and XM+ Receiver Model name: XMPF3E Dimension: 36×36×6mm (L × W × H) with 30.5mm mounting holes Hardware: STM32F303 CPU (72Mhz inc FPU), MPU9250 (accelerometer/gyro/compass), and BMP280 barometer                     for F3EVO, CC2510 CPU for XM+ receiver Channels: 16CH (8CH is RSSI) by SBUS to UART2 Rx of F3EVO Operating Voltage Range: 4.0~10V Operating Current: 100mA@5V Compatibility: FrSky Taranis X9D/X9E/ Horus X12S/XJT in D16 mode Weight: 7g     1x Frsky XMPF3 Flight Control Board 1x Cable 5x Pins
