Altera MAX II CPLD Development Board EPM1270 + 6 Accessory Module Kits =OpenEPM1270 Package A

Overview

OpenEPM1270 is a CPLD development board that features the EPM1270 device onboard. It supports further expansion with various optional accessory boards for specific application. The modular and open design makes it the ideal for starting application development with ALTERA MAX II series CPLD devices.

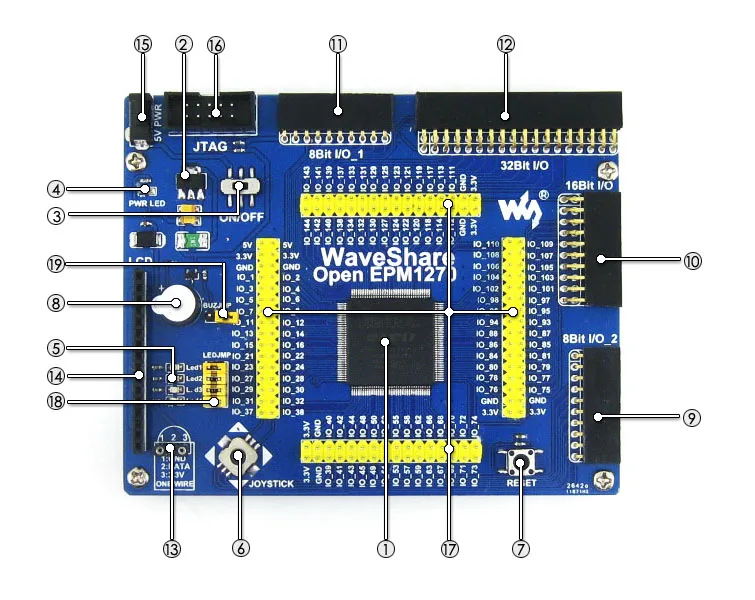

What's On Board

1. EPM1270: onboard CPLD device which features:
   • Operating Frequency: 50MHz
   • Operating Voltage: 1.5-3.3V
   • Package: QFP144
   • I/Os:116
   • LEs: 1,270, the equivalent to 4,000 logic gates
   • Debugging/Programming: JTAG
2. AMS1117-3.3: 3.3V voltage regulator
3. Power switch
4. Power indicator
5. LEDs: convenient for indicating I/O status and/or program running state
6. Joystick: five positions
7. Reset button
8. Buzzer
9. 8 I/Os interface: for connecting accessory boards
10. 16 I/Os interface: for connecting accessory boards
11. 8 I/Os interface: for connecting accessory boards
12. 32 I/Os interface: for connecting accessory boards

For interface 9-12: it's possible to emulate the interfaces as ONE-WIRE, USART, I2C, SPI, PS/2, etc.

1. 1-WIRE interface: for connecting 1-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc.

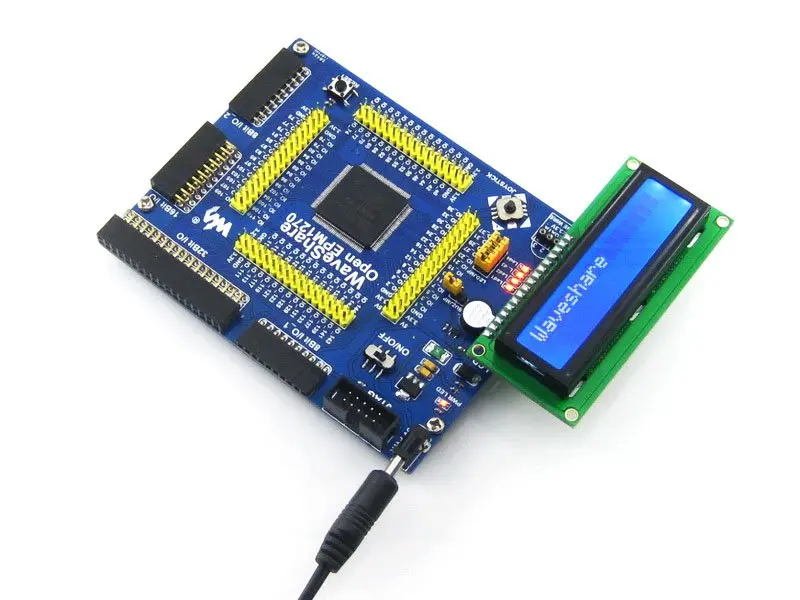

2. Character LCD interface: for connecting character LCD, such as the LCD1602 (5V Blue Backlight) in Package B
3. 5V DC jack
4. JTAG interface: for programming/debugging
5. MCU pins connector: all the MCU pins are accessible on expansion connectors for further expansion
6. LEDs jumper
7. Buzzer jumper

For jumper 18-19:

• short the jumper to connect to I/Os used in example code
• open the jumper to connect to other custom pins via jumper wires

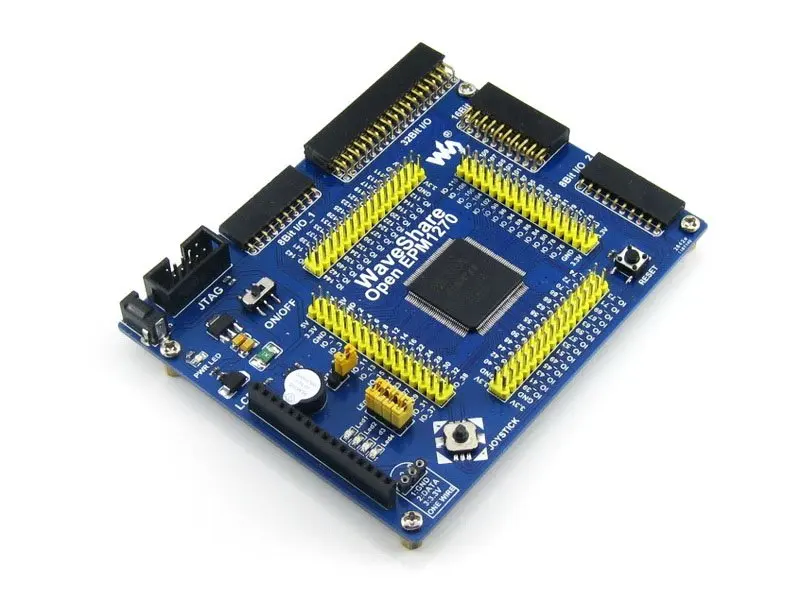

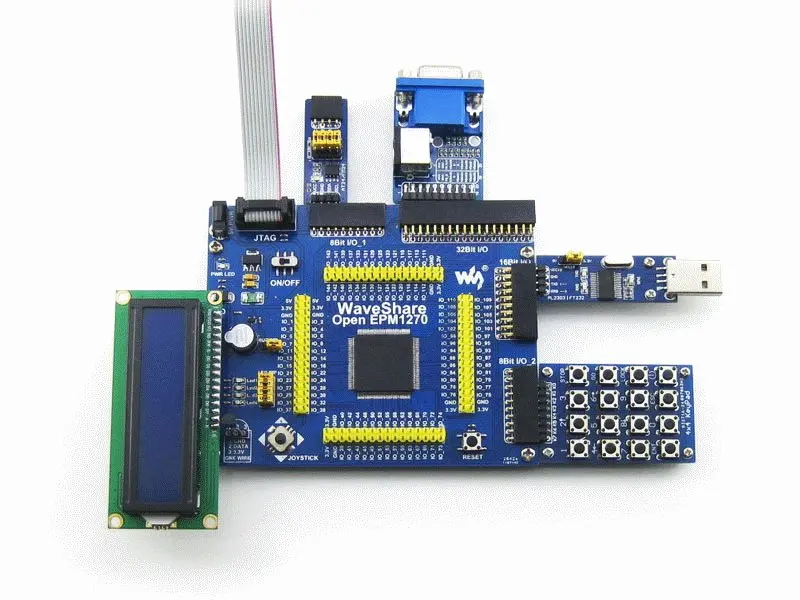

Photos

Note: The OpenEPM1270 does NOT integrate any programming/debugging function, a programmer/debugger is required.

Examples

OpenEPM1270 comes with various examples codes for the supported peripherals, which give you a quick start to develop your own application.

Debugging/Programming Interfaces

The OpenEPM1270 integrates JTAG interface for programming/debugging.

JTAG Signal Names & Description

JTAG Header Pinout

Development Resources

• Related Software (Quaters II etc.)
• Demo Code (Verilog and VHDL)
• Schematic (PDF)
• CPLD Development Documentations (Datasheets etc.)
• Wiki: www.waveshare.com/wiki/OpenEPM1270

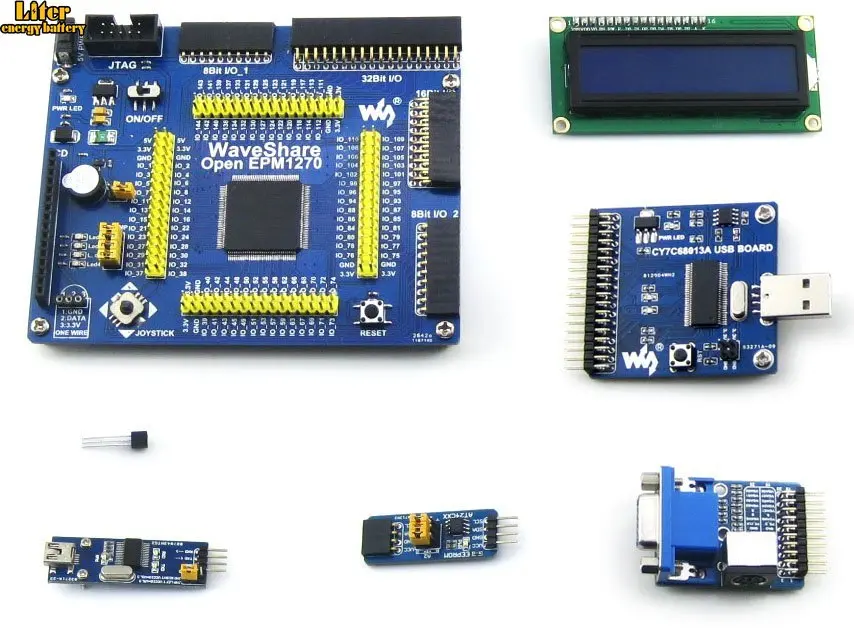

Package Contains

The "Standard Package" and "Accessory Boards Package" below are included.

Standard Package

1. OpenEPM1270 development board x 1
2. 4-pin wire x 2
3. 2-pin wire x 2
4. USB power cable x 1

Accessory Boards Package

1. USB type A to Mini-B cable x 1
2. PL2303 USB UART Board (mini) x 1
3. LCD1602 (5V Blue Backlight) x 1
4. AT24CXX EEPROM Board x 1
5. DS18B20 x 1

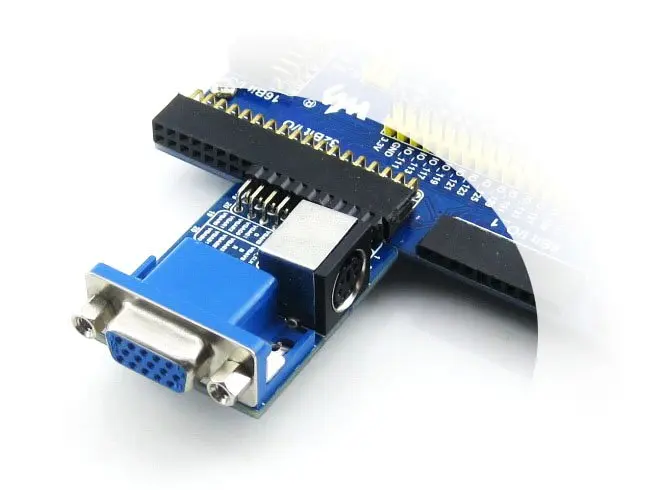

6. VGA PS2 Board x 1
7. CY7C68013A USB Board (mini) x 1
