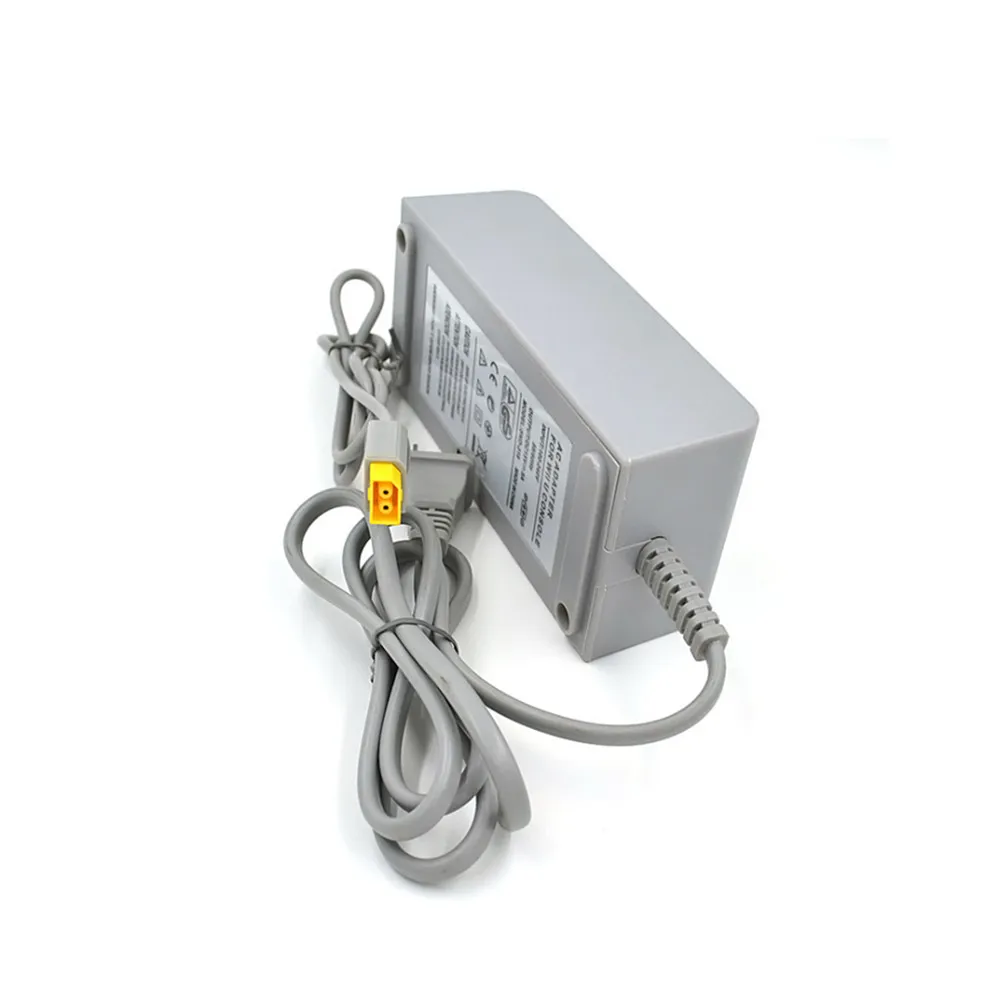

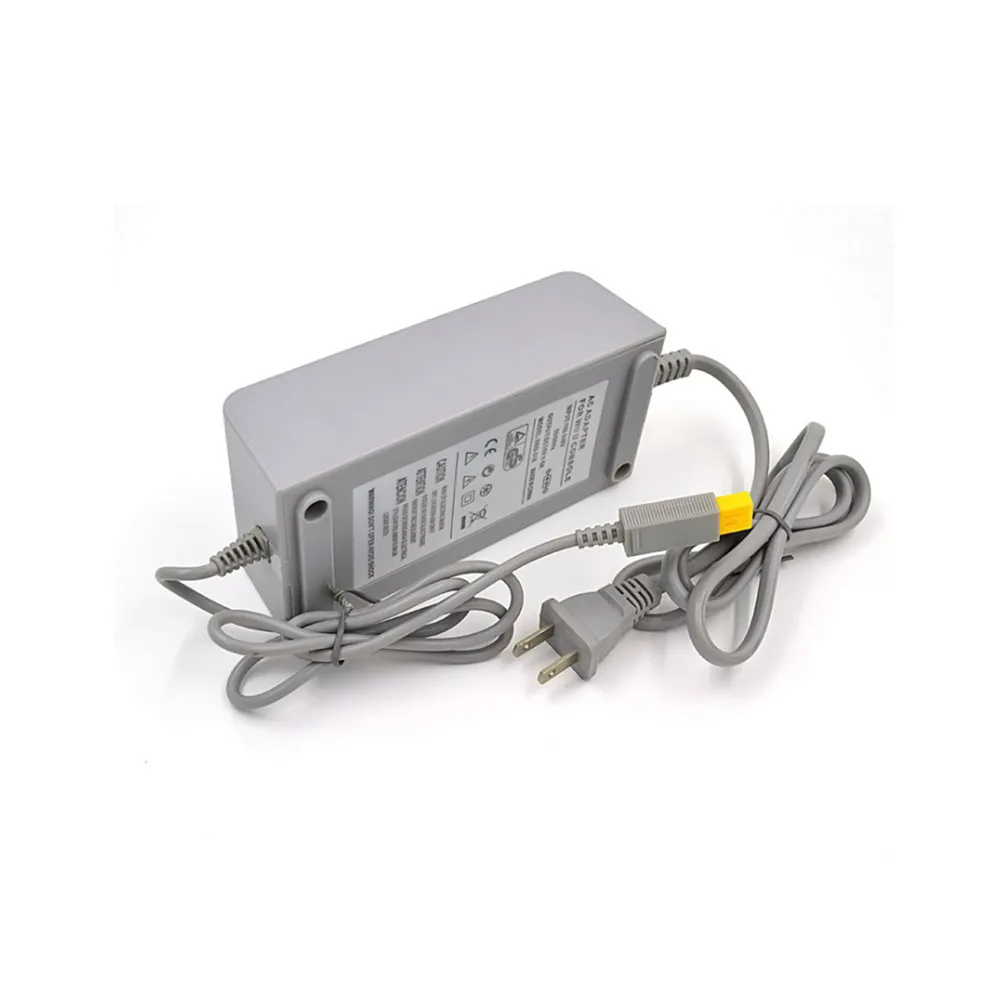

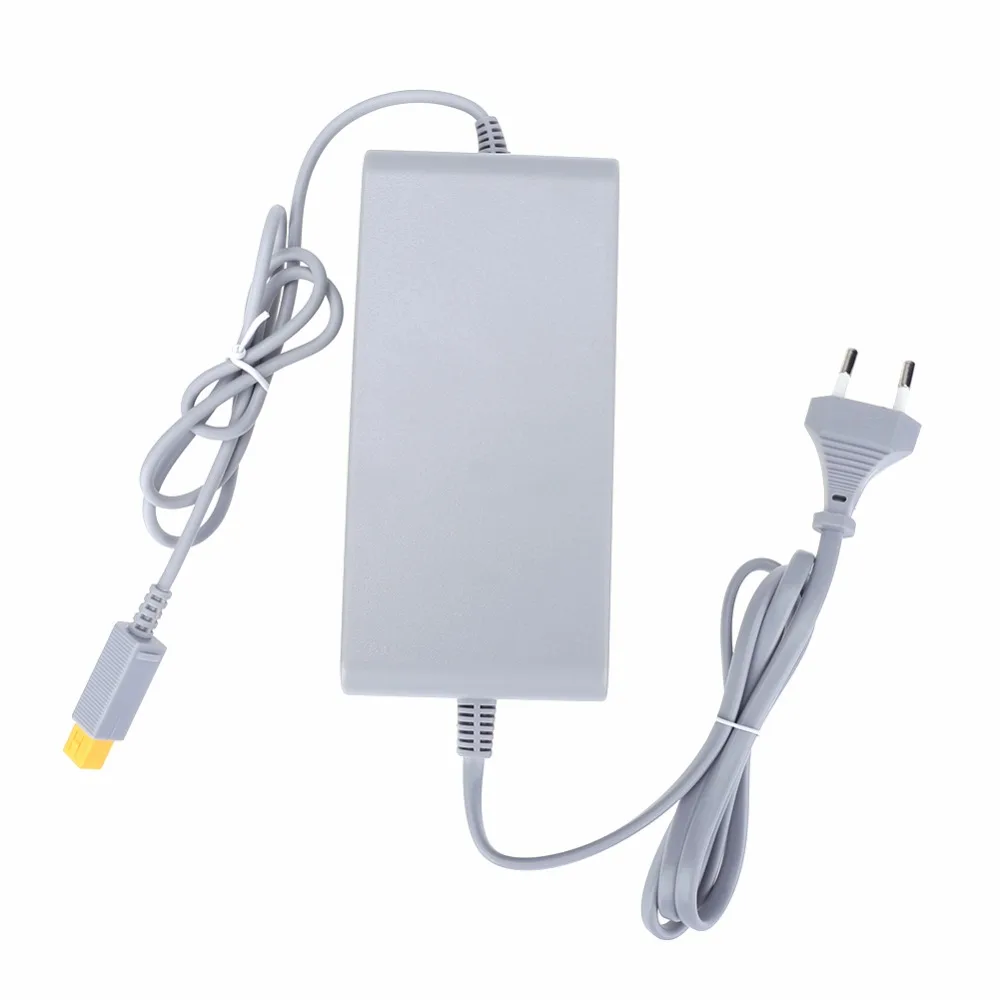

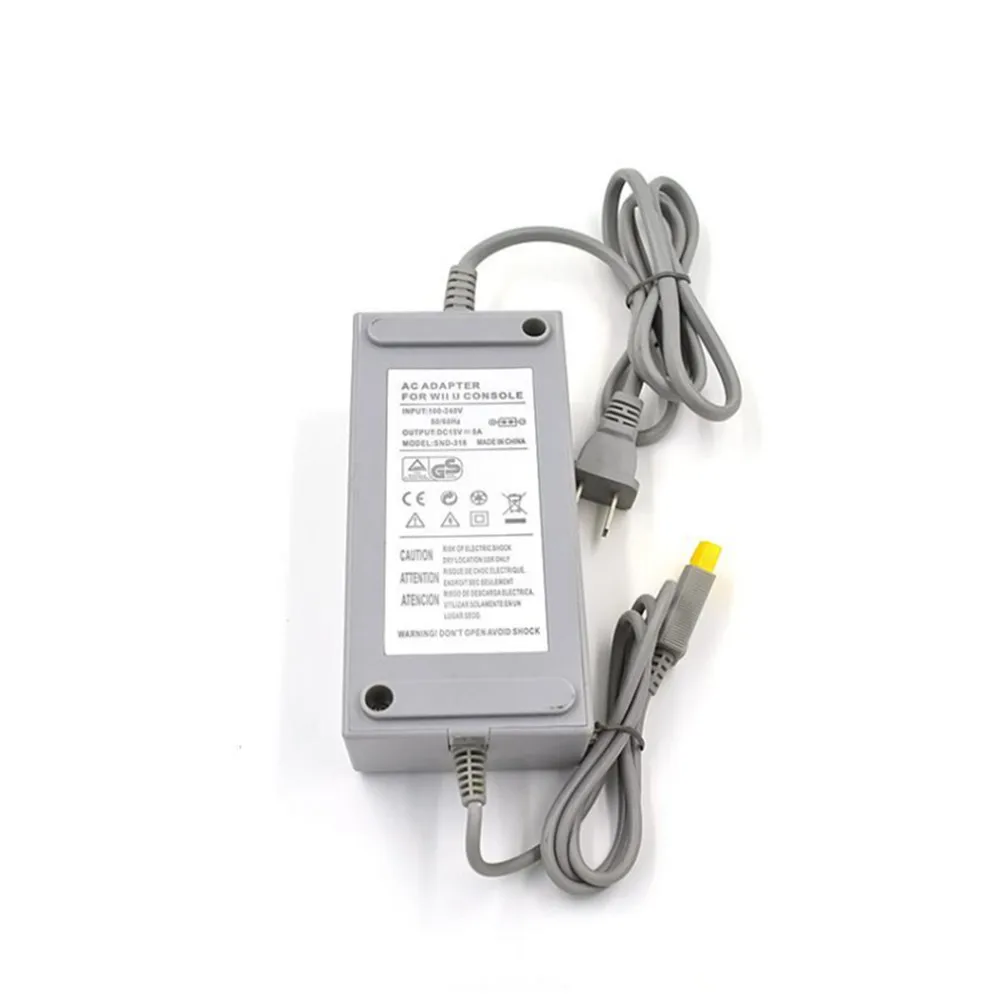

Ideal replacement for the original AC power adapter.
Compatible with For Nintend For Wii U Console Host
Input: AC 110-240V
Output: 15V 5A
length of cable:1.5M
Outlet: US/EU Plug
Color: Grey
•1. Scope

•The document details the electrical, mechanical and environmental specifications of a SMPS,

•the power supply provides 75 W continuous output power.

•Description：

•□SMPS Adaptor(Wall mount) ■SMPS Adaptor(Desk-top)

•□Open Frame □SMPS Unit (With Case)

•□Others

•2. Electrical Characteristic

•2.1 Test Circuit

•If the test is to be made on a specified circuit, be sure to use the following circuit.

•Input Characteristics

•3.1. Input Voltage & Frequency

•The range of input voltage is from 100Vac to 240Vac with a singlephase.

3.2 Input Current

Maximum steady state input current is1400 mA(Max）Measured at 100~240Vac input and maximum load.

3.3 Peak Inrush Current

With cold starting, the peak inrush current should less than 27A.

3.4 Efficiency

78% min. measured at 100Vac~240Vac input voltage, maximum load and include the DC cable loss.

4. Output Characteristics

4.1 Static Output Characteristics

Ripple & Noise: Tested by a oscilloscope using 20MHz bandwidth and theoutput is paralleled a 0.1uF ceramic capacitor and a 10uF electrolysiscapacitor. (Under the input Voltage 100~240Vac)

•4.2 CC Mode,Rated Output Current

•The output current will be performed from 5000mA when100~240Vac inputAC voltage.

•4.3 LED Indicate Function

• NO LED Indicate

•4.4 Rated Power Ripple & Noise: Tested by a oscilloscope using20MHz bandwidth and the output is paralleled a 0.1uF ceramic capacitorand a 10uF electrolysis capacitor. (Under the input Voltage 100~240Vac)

•4.2 CC Mode,Rated Output Current

•The output current will be performed from 5000mA when100~240Vac inputAC voltage.

•4.3 LED Indicate Function

100pcs x adapter
